Samsung A23 5G Screen

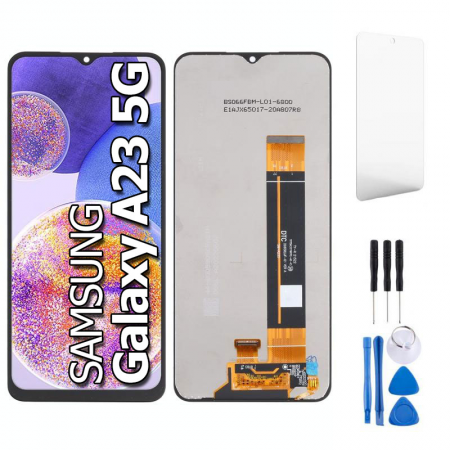

The Samsung Galaxy A23 screen we offer is a brand new screen so you can replace the old module. This spare part is suitable for the phone models SM-A236F, SM-A236F/DS, SM-A236F/DSN, SM-A236M, SM-A236M/DS (Year 2022). The module is an integrated component. It includes:
- The touch screen with protective glass.
- The LCD screen.
- A connection flex that assembles to the motherboard.
- An integrated image controller IC.
To make it easier to remove the screen, we include a set of tools, among them are levers, a pick, and tools to remove screws. You will use each element to achieve a successful screen repair.
The Samsung A23 screen and the tools will be dispatched to you in perfect condition thanks to the type of box we use, ensuring that nothing we sold you gets damaged.
How to tell if you have a damaged screen
Most accidents that all mobile phones receive can be concluded to be not serious. Usually, they only scratch the screen and do not suffer any other major damage. However, there are times when our mobile receives a serious blow and we do not see any scratches at first glance. That's when you should follow these essential items to verify the functionality of your device.
If the touch fails, we will realize by noticing the exterior shattered but the screen continues to be displayed normally. But the screen will be broken if the mobile stops working, that is, if only a section is displayed, vertical lines appear, or nothing is displayed at all.
To check that we need to place another one, go to settings. Then, to "Phone information" and click 7 times on "build number". This gives you access to the "developer options".
Within this section, select "pointer location", and outline over the entire area of the module. If these are not represented, it is assumed to be defective and you have to replace it.
How can I easily change the Samsung A23 Screen
One option we recommend is that you search our channel about Samsung A23 Screen and the tools you need to fix it like the toolkit we give you, some kind of adhesive and a heat source, like a hairdryer.
Once we have the diagnosis and the tools, it's time to carry out the repair very carefully.
The steps to follow are:
- The first and super important thing is that you turn off your cell phone, this way you can start to take care of it without breaking anything. Also, if you can remove the battery located on the back it would be excellent so that it does not overheat.
- Now, we will turn on our hairdryer to be able to separate the damaged display from the device, which is sealed with an adhesive. Always use it on the edges not in the center, otherwise, you will melt the important modules, and if you did not remove the power source, it could acquire a lot of heat and then it will break. Now, use the pick to start detaching the display, use a constant and gentle force.
- Finish separating the module with the suction cup (included in the kit that comes with the Samsung A23 Screen) and carefully detach from the motherboard. Before removing it completely check well how is the connection that links to the motherboard, this way you do not damage the base where you are going to put the new Samsung A23 screen.
- An important step, clean well all the remnants of adhesive with a gauze and an appropriate liquid.
- Finally, it's time to assemble the new A236. Check if it starts and if it is working correctly, both the graphics and the touch.
You're done, you now have the new screen on your smartphone. Don't forget to place the battery and check its operation.
What is the price to buy the screen?
The price we detail at the beginning (17.90€), only the cost of shipping will be added. VAT is already included in the purchase. You can choose super fast shipping, or common shipping which will have its delays. In both choices you can trust that what you ordered will arrive in optimal conditions.
Should I go to the original service
Not at all, because we indicate everything you need so that you can change it yourself. This way you can install the screen without risks and also you can save a significant amount of money.
Original Samsung Galaxy A23 Tips
Now that you have your new screen installed, undoubtedly you want to protect it so that the same thing does not happen again.
There are many cases on the market that serve to protect your device, although we recommend the high impact ones that protect the edges of the equipment.Next, tempered glass protectors are very easy to install, we include one for free. They also withstand many falls, they can crack many times, but the new screen will not be damaged.
• Product Weight: 0.15 kg.The technical specs of Samsung Galaxy A23 5G
can help you to choose the correct repair part for your device. Make sure your model reference is the same as this element. Here are some tech specs to help you:
- Brand: Samsung
- Samsung Galaxy A23 5G Size: 165.4 x 76.9 x 8.4 mm.
- Release date: 2022, August 05.
- Weight: 197 g.
- Screen specs: PLS LCD, 120Hz.
- Screen size: 6.6 inches, 104.9 cm2.
